Passenger Elevators

(with Machine Room)

Passenger Elevators Features :

Machine : Geared or Gearless-fitted in the Machine Room on I-Beams.

Normal Load : 4 Passenger (272 Kgs.) to 26 Passenger (1768 Kgs.)Loads

Speed : Low Rise : (Up to 6 floors) - 0.65 to 1.0 meter/second.

Mid Rise : (Up to 12 floors)-1.0 to 1.6 meter/second.

High Rise : (12 Floors and Higher)-1.6 meter/second.

Control Unit : Microprocessor based control unit is fitted in the Machine Room.

Drive : Variable Voltage Variable Frequency drive fitted in the control unit with open and closed loop operation.

Doors : Automatic Center / Telescopic Doors or Manual Imperforated and Telescopic doors.

Door Image
Door Image

Passenger Elevators Advantages

Energy Efficient : Use of variable frequency drives ensures low consumption of electricity and thus, power saving. Auto light ON and OFF, use of LED lights results in immense saving of power.

Standardization : All lifts are designed as per IS Specifications and as perthe lift directives in force.

Comfort : Jerk Free and Smooth Ride.

Space Optimization : With Rise Elevators’ Electric lift space is no longer very critical that needs to be considered when deciding to install an Elevator with or without Machine Room. Space-Optimization is guaranteed by efficient design.

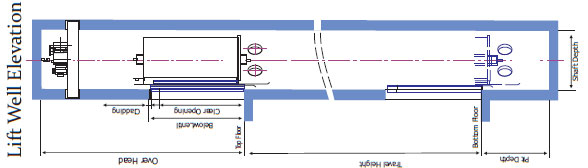

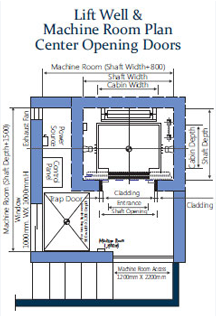

Load Car-Inside Lift-Well Entrance Machine Room Speed Mps PIT Depth Over Head
Persons Kg. Width Depth Width Depth
15 1020 950 2400 1700 3000 800 3700 5500 Up to 1.5 1600 4800
20 1360 1300 2400 2200 3000 1200 4200 5500 Over
1.5
2500 6700
20 1768 1600 2400 2350 3000 1200 4350 5500

Passenger Elevators

(without Machine Room)

Passenger Elevators Features :

Machine : Permanent Magnet Synchronous gearless motor are fitted within the shaft overhead.

Normal Loads : 4 Passenger (272 Kgs.) to 26 Passenger (1768 Kgs.)Loads

Speed : Low Rise : (Up to 6 floors) - 0.65 to 1.0 meter/second.

Mid to High Rise : (6 floors and higher)- 1.0 to 2.5 meter/second.

Control Unit : Microprocessor based control unit is fitted in the top most floor along with the door frame and recessed in the wall.

Drive : Variable Voltage Variable Frequency drive fitted in the control unit.

Doors : Automatic Center / Telescopic Doors or Manual Imperforated and Telescopic doors.

Door Image
Door Image

Passenger Elevators Advantages

Space Optimization : With rise elevators lift space is no longer very critical that needs to be considered when deciding to install an elevator with or without machine room. Space-optimization is guranteed by efficient design.

Environment Friendly and Energy Efficient : Lower power consumption with a gearless machine, No oil and silent operation, therefore low maintenance and long life cycle.

Power saving lighting : The cabin lighting is LED type and with auto light ON/OFF feature which results in immense saving of power.

Comfort : It features a portic frame with 2:1 suspension and gurantees a top quality ride.

Technology : Closed loop operation is synchronized with an absolute Encoder which enhances efficiency and reliability.
